How to Choose the Mechanical Seal of the Chemical Electroplating Pump?

Author : Arthur

Update time : 2022-02-21 13:54:50

How to Choose the Mechanical Seal of the Chemical Electroplating Pump?

Selection of sealing parts of chemical pump

1.Brief Introduction of Electroplating Chemical Equipment:

No leakage is the eternal pursuit of chemical electroplating equipment.

It is this requirement that leads to the increasing application of electroplating magnetic pumps.

However, there is still a long way to go to achieve no leakage, such as the service life of electroplated magnetic pump sealing sleeve, the pitting corrosion of materials, the reliability of static seal, and so on.

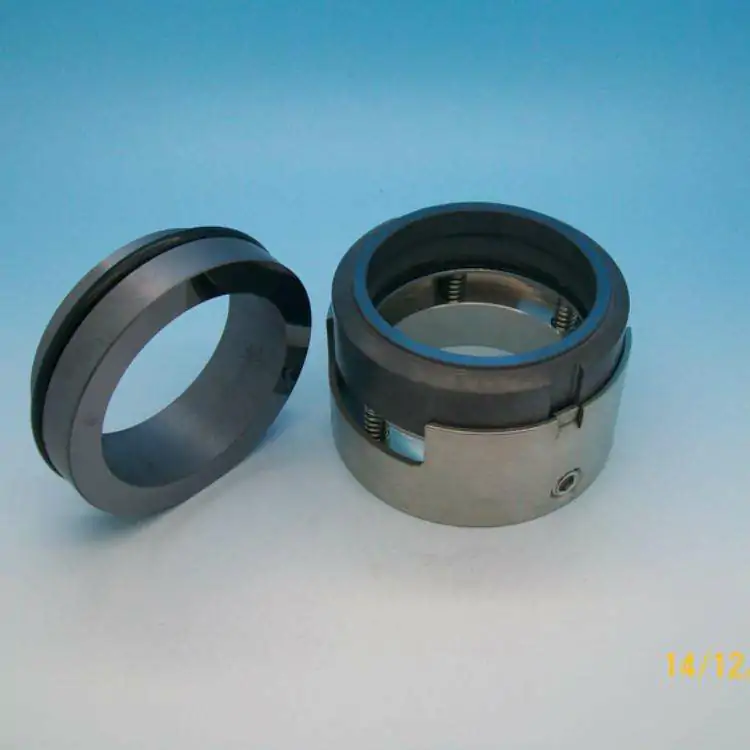

2.Mechanical Seal of Electroplating Chemical Pump:

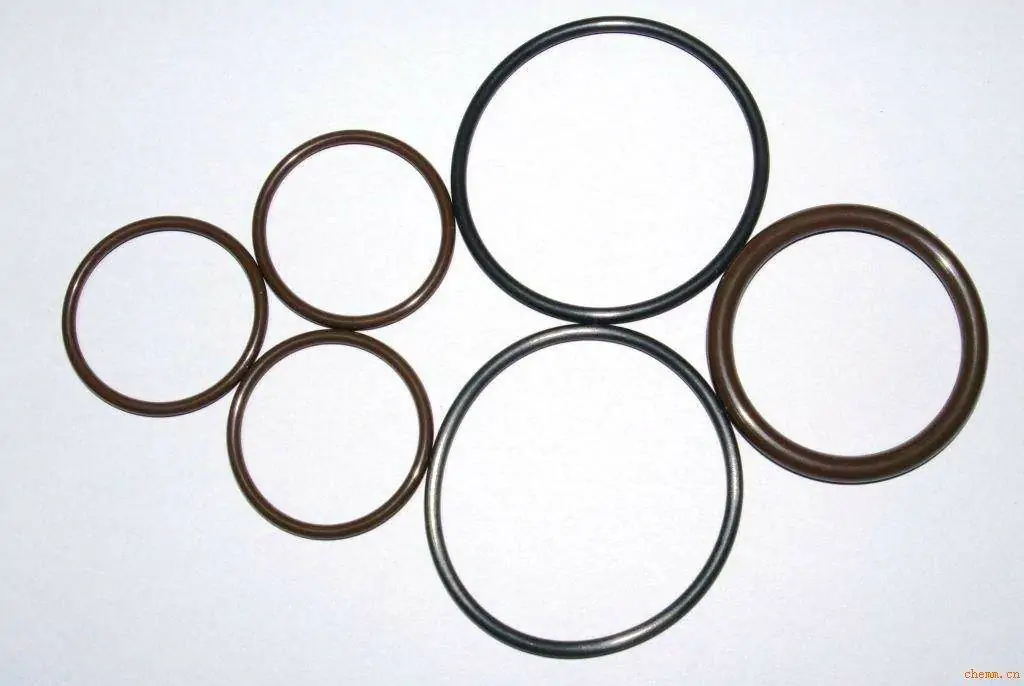

O-ring

1. For static seal, there are usually only two forms of seal gasket and seal ring, and O-ring is the most widely used seal ring; For dynamic seals, chemical electroplating pumps rarely use packing seals, mainly mechanical seals. Mechanical seals can be divided into single end face and double end face, balanced type, and non-equilibrium type. The balanced type is suitable for the sealing of high-pressure media (usually the pressure is greater than 1.0MPa). The double end face mechanical seal is mainly used for high-temperature, crystallizable, viscous, granular, and toxic volatile media, For double face mechanical seal, isolation fluid shall be injected into the ceiling cavity, and its pressure is generally 0.07 ~ 0.1MPa higher than the medium pressure.

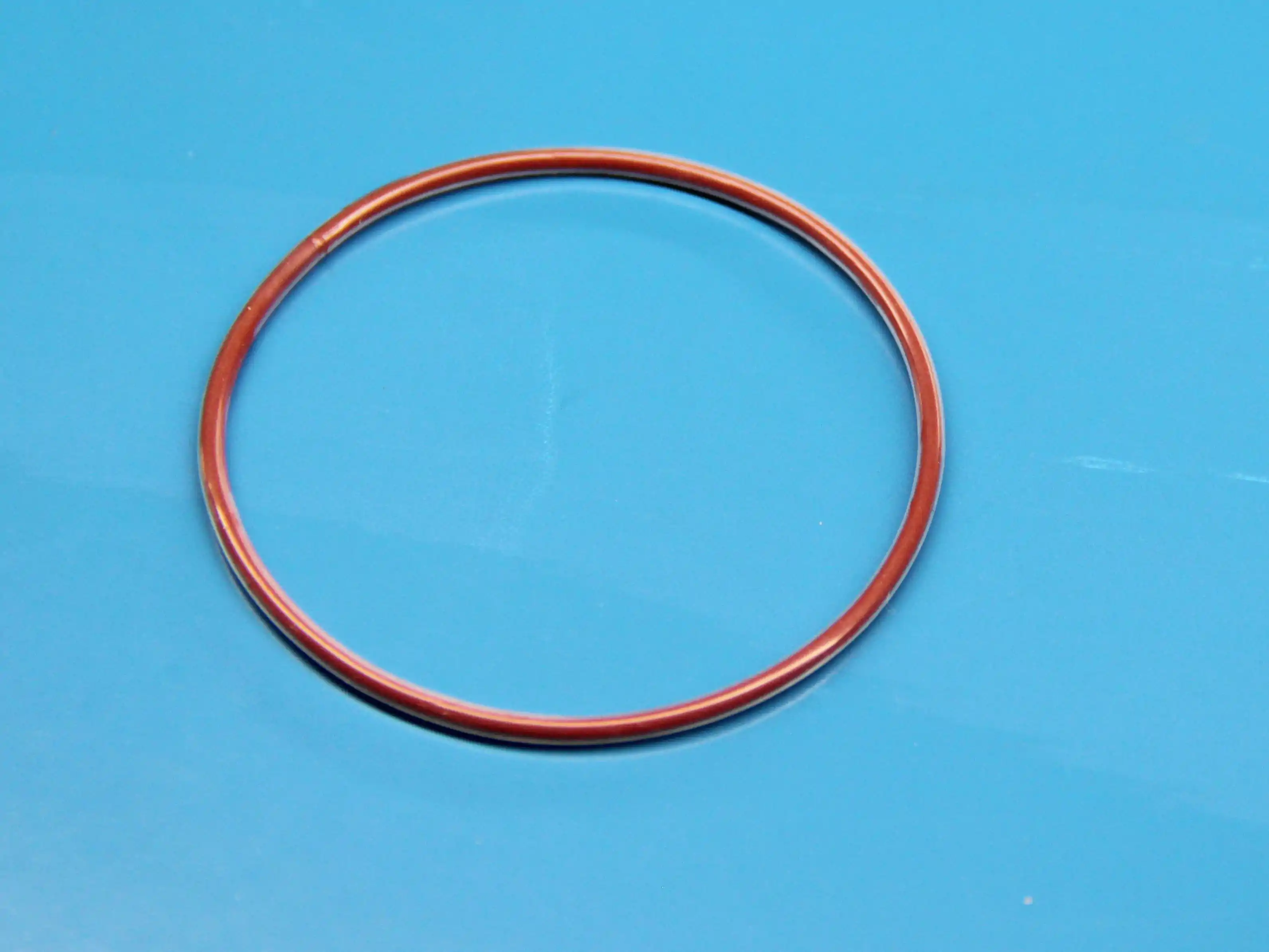

2. Sealing material: the static sealing material of the chemical electroplating magnetic pump is generally fluoro rubber, and Teflon material is only used in special cases; The material configuration of the dynamic and static rings of mechanical seals is more critical. Cemented carbide is not the best for cemented carbide. The high price is on the one hand. There is no hardness difference between the two and it is unreasonable, so it is best to treat them differently according to the characteristics of the medium.

Sealing is the most important part of the operation of a chemical electroplating pump, especially in the environment of strong acid-base liquid. Once leakage occurs, the consequences will be unimaginable. Therefore, you must be careful in choosing sealing mode and material. If you are not familiar with this aspect, you can contact us and we will provide you with appropriate solutions free of charge.

DUBAO pump industry is a professional manufacturer of electroplating chemical pumps and filters in China. In the past 22 years, it has solved various problems for countless customers. Welcome to contact us. We are happy to provide you with the best quality service in terms of technology, products, and solutions.
