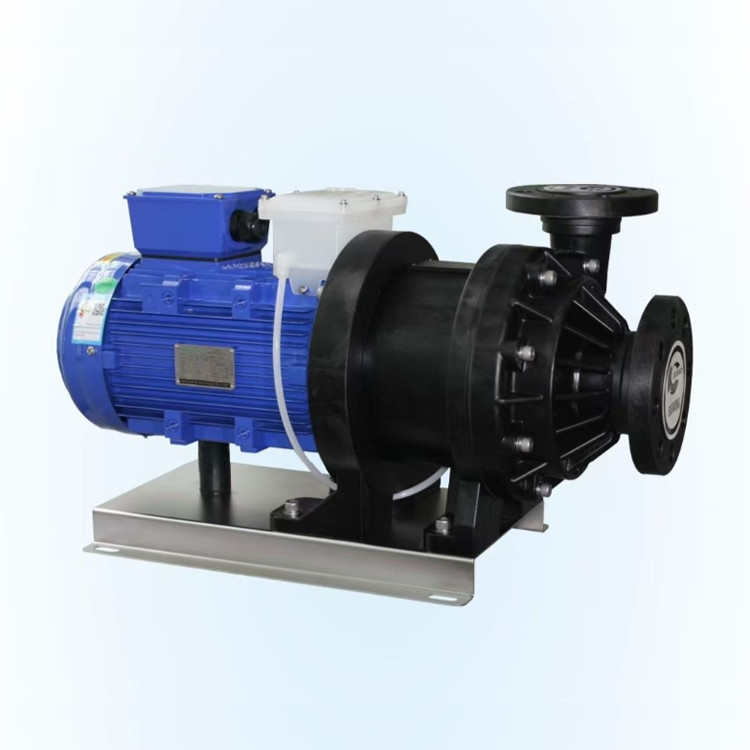

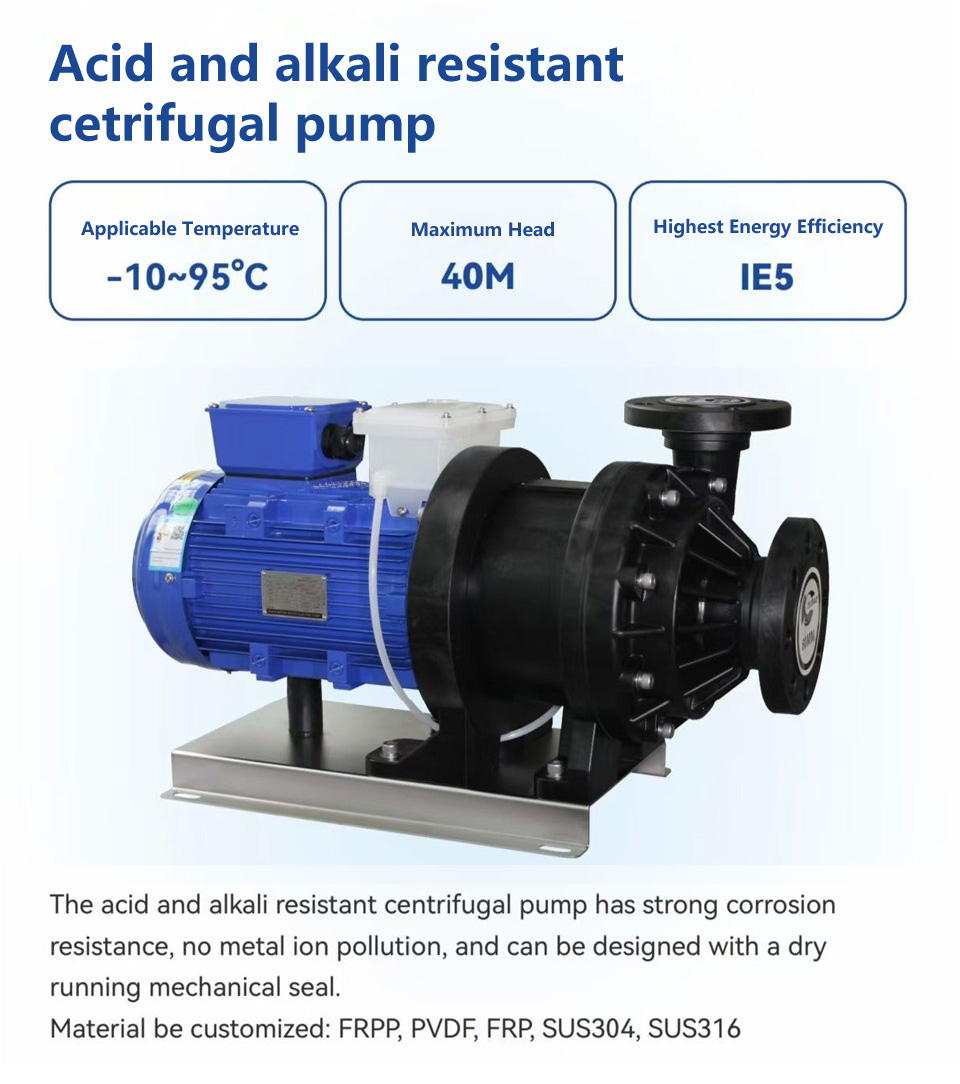

SG Series Acid and Alkali Resistant Centrifugal Pump

Name: SG Series Acid and Alkali Resistant Centrifugal Pump
Brand: DUBAO Pump Industry Co., Ltd
SKU: 00385
Availability: InStock
Rating: 5 (1 reviews)

Product Introduction

Features And Specification

Features:

1. Operating temperature: FRPP-70°C, PVDF-95°C,depending on different chemical properties;2. Chemical: Selecting various pump body
materials can withstand strong acids and strong bases, etc.;
3. Unique shaft seal design: Using Teflon Bellows Seal selfoling type, selecting shaft seal materials Sic,Carbon, ceramic based on
different chemical properties;
4. The pump body is injection-molded in one piece, to assemble, and can be equipped with a cooling device;
5. The main components have lower costs, are easy to assemble and maintain.

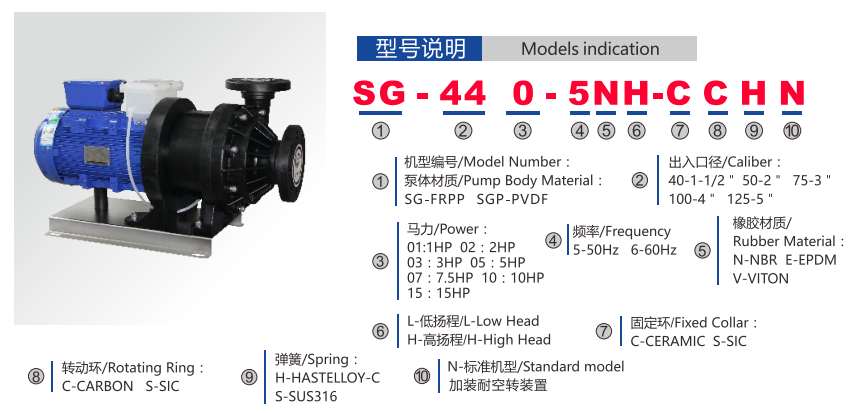

Model and Parameter

Model	Inlet*Outlet	Frequency(Hz)	Rated Capacity(L/min)	Rated Head(m)	Max Capacity(L/min)	Max Head(m)	Motor output(kW)
SG-440	40 × 40	50 Hz	100	10.5	240	12	0.37
SG-440	40 × 40	60 Hz	100	11.5	240	13	0.37
SG-441	40 × 40	50 Hz	150	15.5	330	19	0.75
SG-441	40 × 40	60 Hz	150	15.5	330	19	0.75
SG-542	50 × 40	50 Hz	200	21	450	24.5	1.5
SG-552	50 × 50	60 Hz	200	21	450	25.5	1.5
SG-543	50 × 40	50 Hz	250	26	510	31	2.2
SG-553	50 × 50	60 Hz	250	26	510	31	2.2
SG-545	50 × 40	50 Hz	250	31	500	35	3.75
SG-555	50 × 50	60 Hz	250	35	500	39	3.75
SG-653	65 × 50	50 Hz	450	16	600	20	2.2
SG-653	65 × 50	60 Hz	450	16	600	20	2.2
SG-655	65 × 50	50 Hz	500	25	860	27.5	3.75
SG-655	65 × 50	60 Hz	500	25	860	28	3.75
SG-867	80 × 65	50 Hz	800	22.5	1180	27	5.5
SG-867	80 × 65	60 Hz	800	22.5	1180	27	5.5
SG-868	80 × 65	50 Hz	1000	26	1330	33.5	7.5
SG-868	80 × 65	60 Hz	1000	26	1330	33.5	7.5
SG-8615	80 × 65	50 Hz	1500	28	1700	39	11
SG-8615	80 × 65	60 Hz	1550	29	1750	40	11
SG-663	65 × 65	50 Hz	650	11	1050	17	2.2
SG-663	65 × 65	60 Hz	550	12	1000	18	2.2
SG-665	65 × 65	50 Hz	750	15	1230	21	3.7
SG-665	65 × 65	60 Hz	660	17	1250	23	3.7

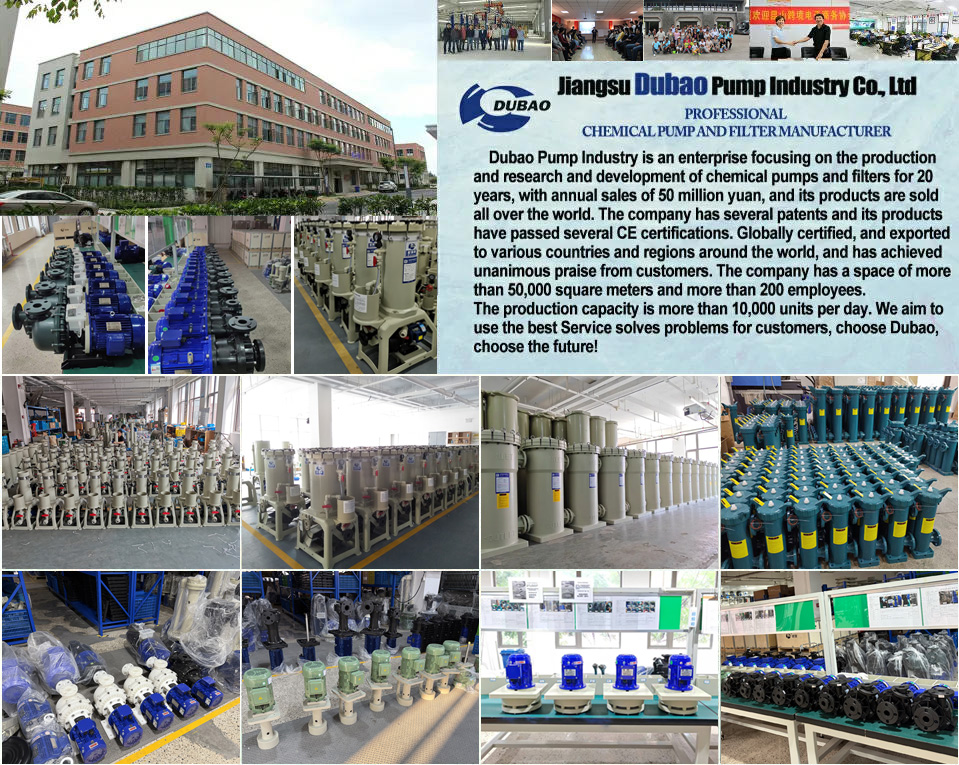

Company Profile
