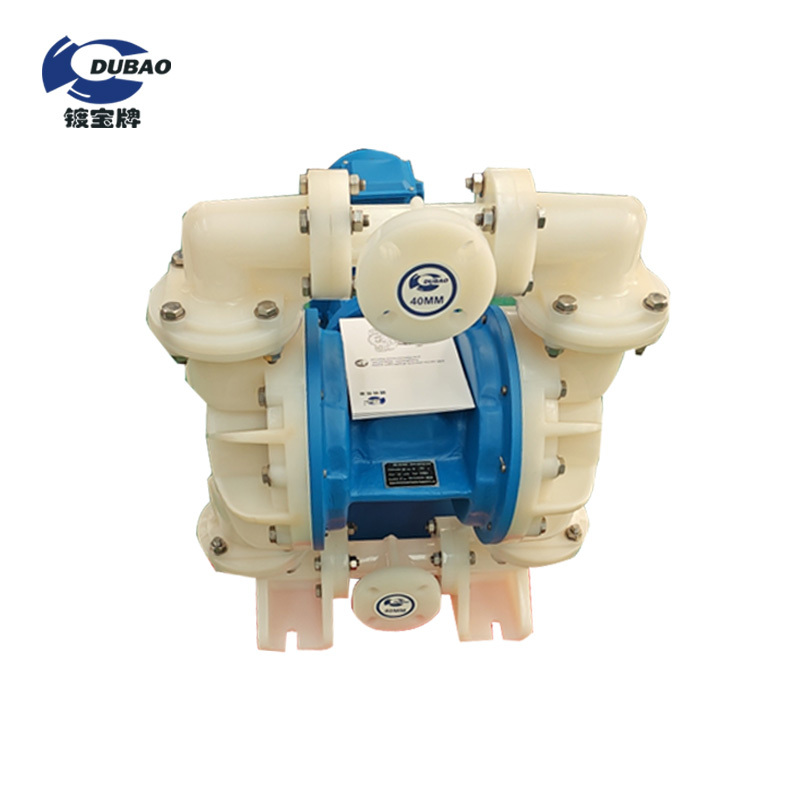

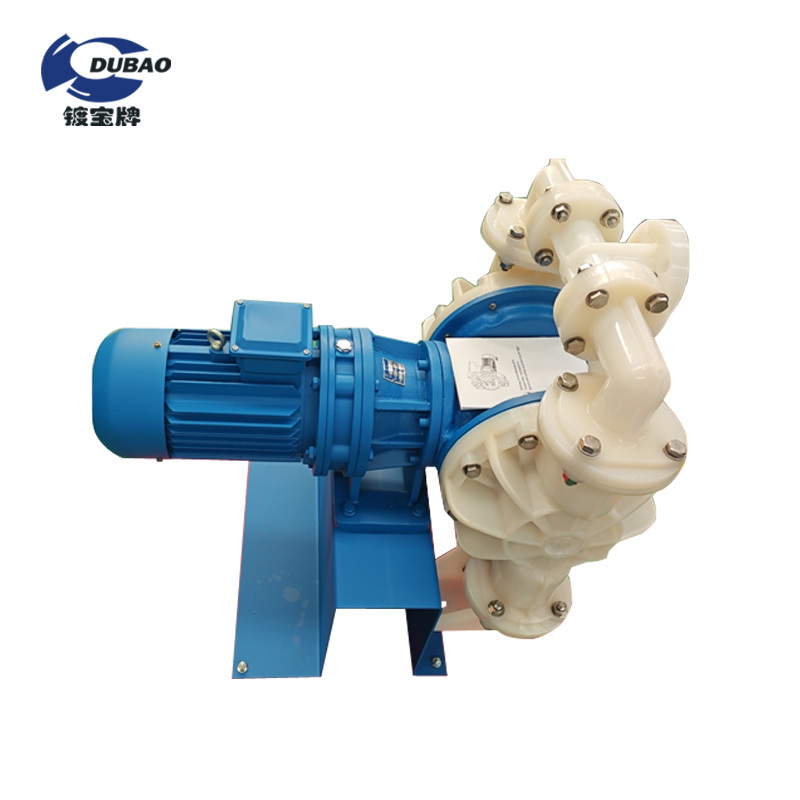

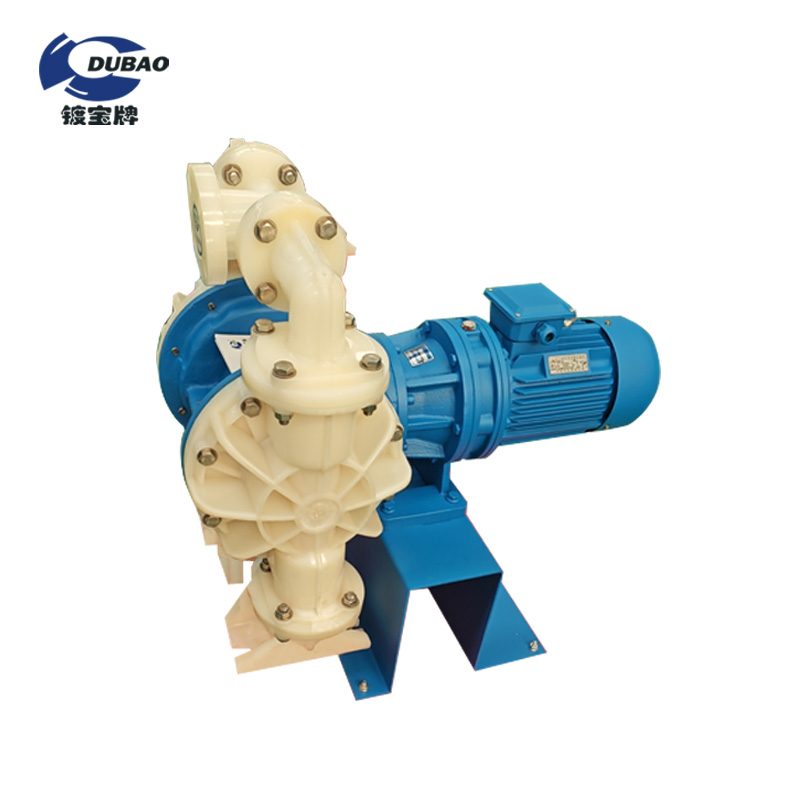

Acid And Alkali Resistant Electric Diaphragm Pump DBL Series

Product Introduction

DBL series electric diaphragm pump Product Overview and Working Principles

The DBL series electric diaphragm pump is a reciprocating positive displacement pump. The product consists of a motor, a drive end, and a fluid end. The deceleration motor drives the eccentric mechanism to rotate, and the eccentric mechanism drives the central shaft to perform left and right reciprocating motion, with membranes installed on both sides of the central shaft. The diaphragm moves back and forth with a certain stroke degree. When the diaphragm is pulled back, the material flows into the chamber through the inlet return valve. When the diaphragm is pushed forward, the material is discharged from the outlet return valve. The continuous reciprocating motion of the diaphragm continuously transports and discharges materials, thereby achieving the conveyance of materials.

Attention: During the material suction process, ensure that the pressure in the suction pipeline and pump chamber is higher than the saturated vapor pressure of the material. If the pressure in the suction pipeline and pump chamber is lower than the vaporization pressure of the material, cavitation will occur.

Warning

• Before installation, maintenance, and upkeep, the power must be cut off and a maintenance notice board must be posted at the power source before equipment operation can be carried out.

• Before installation, maintenance, and upkeep, the equipment must be depressurized to ensure that the shut-off valves in the pipeline are closed and there are no chemical residues.

• Before installation, maintenance, and upkeep, it is necessary to wear appropriate safety protective equipment to ensure personal safety.

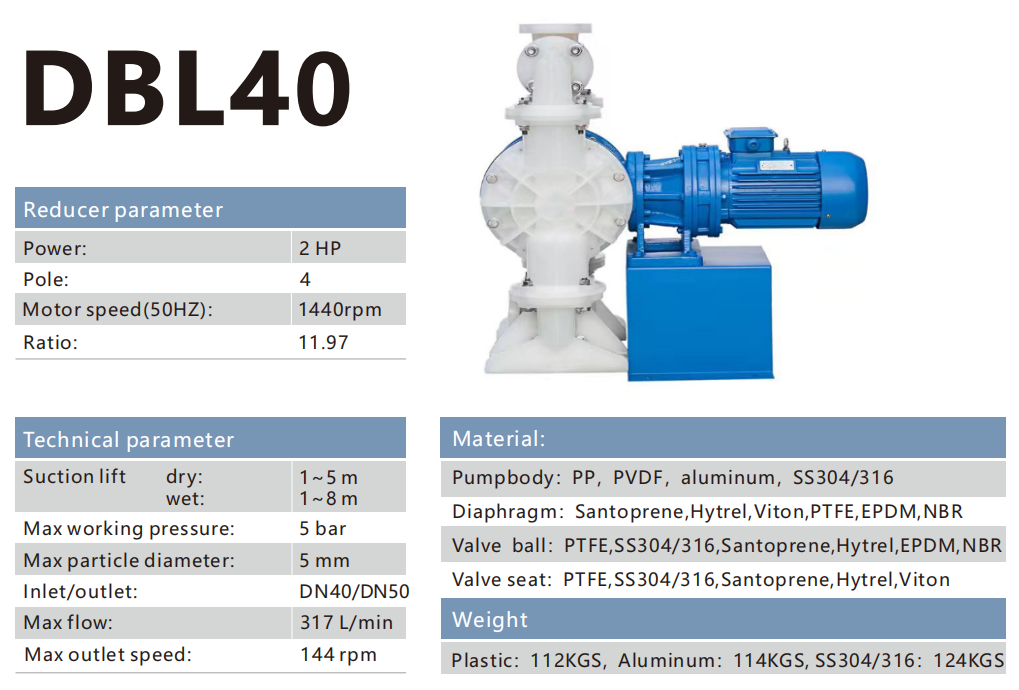

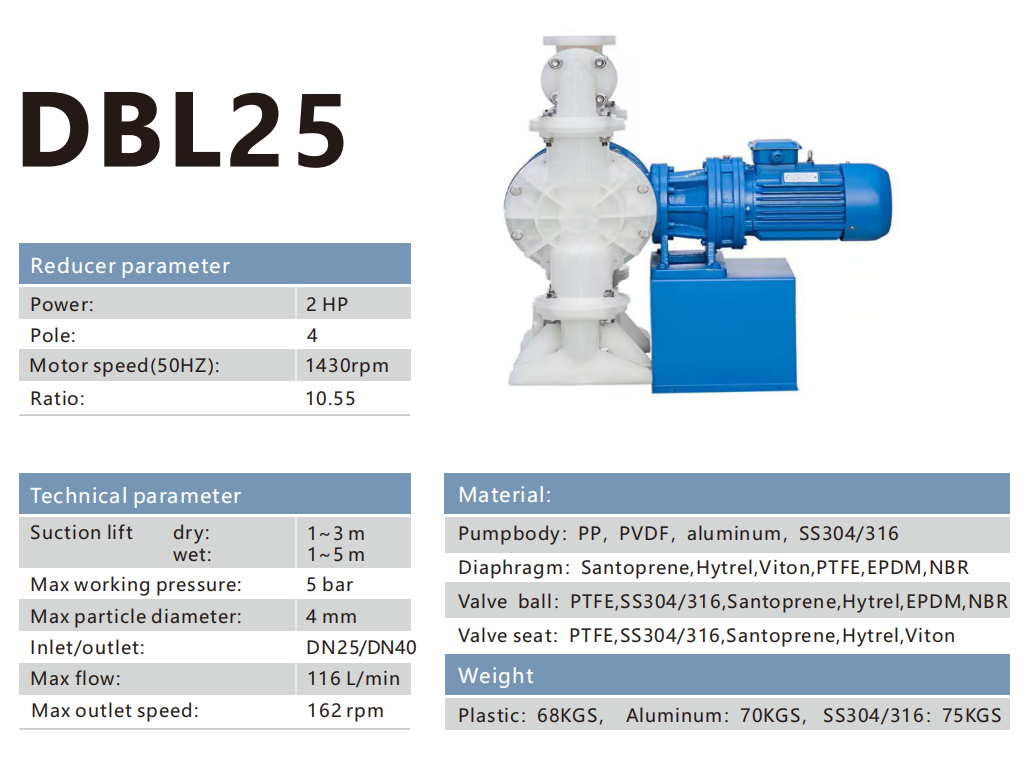

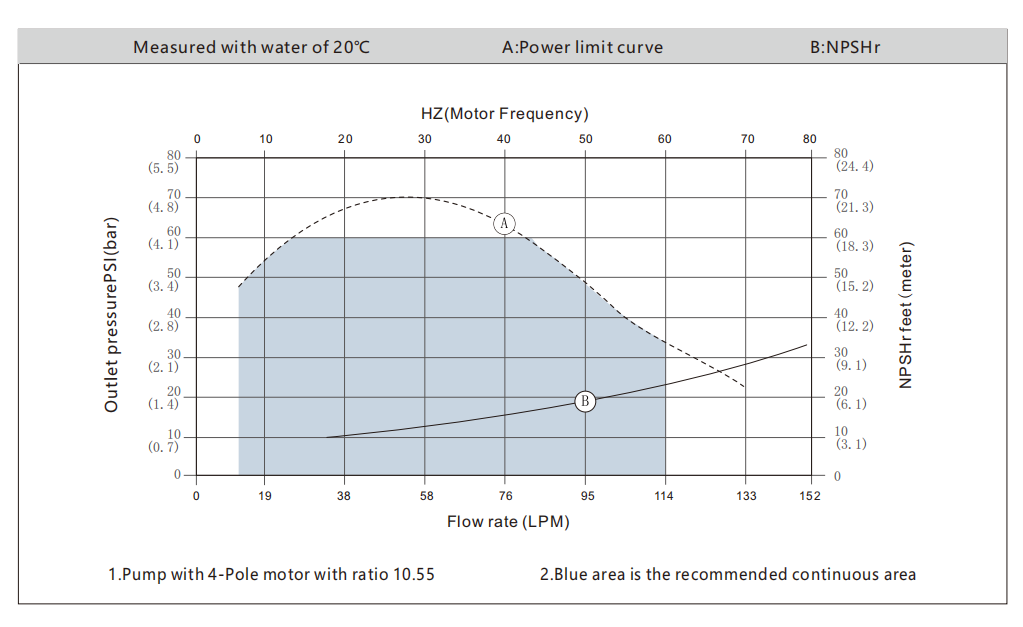

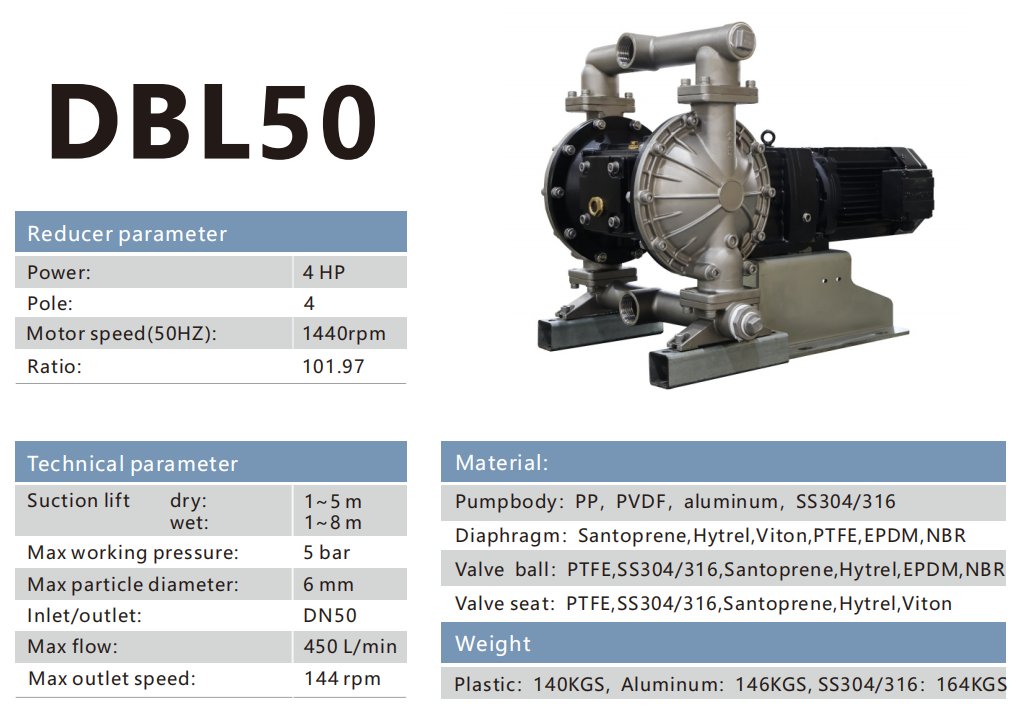

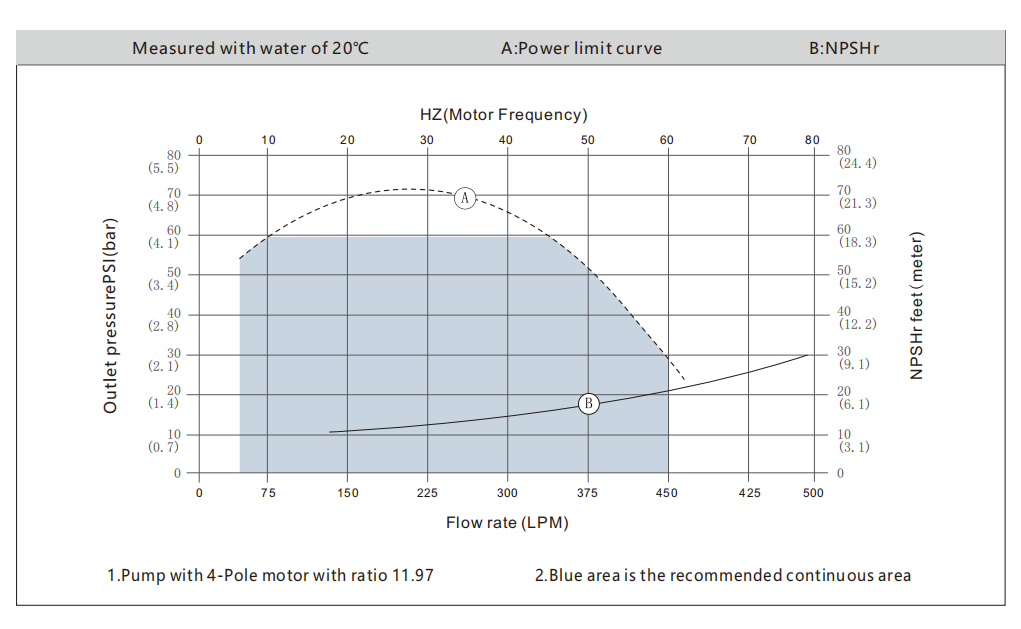

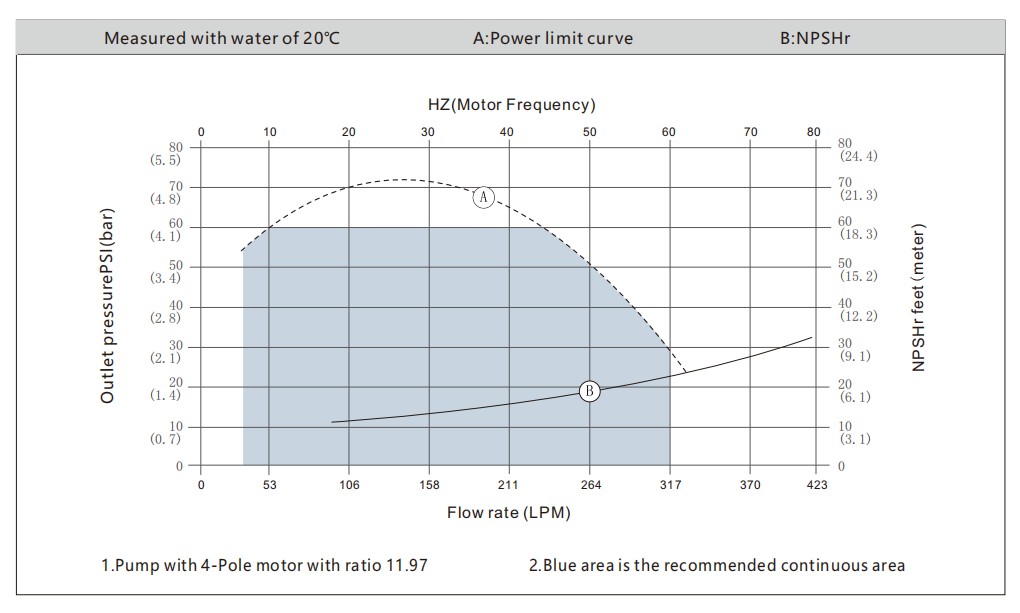

Technical Parameter

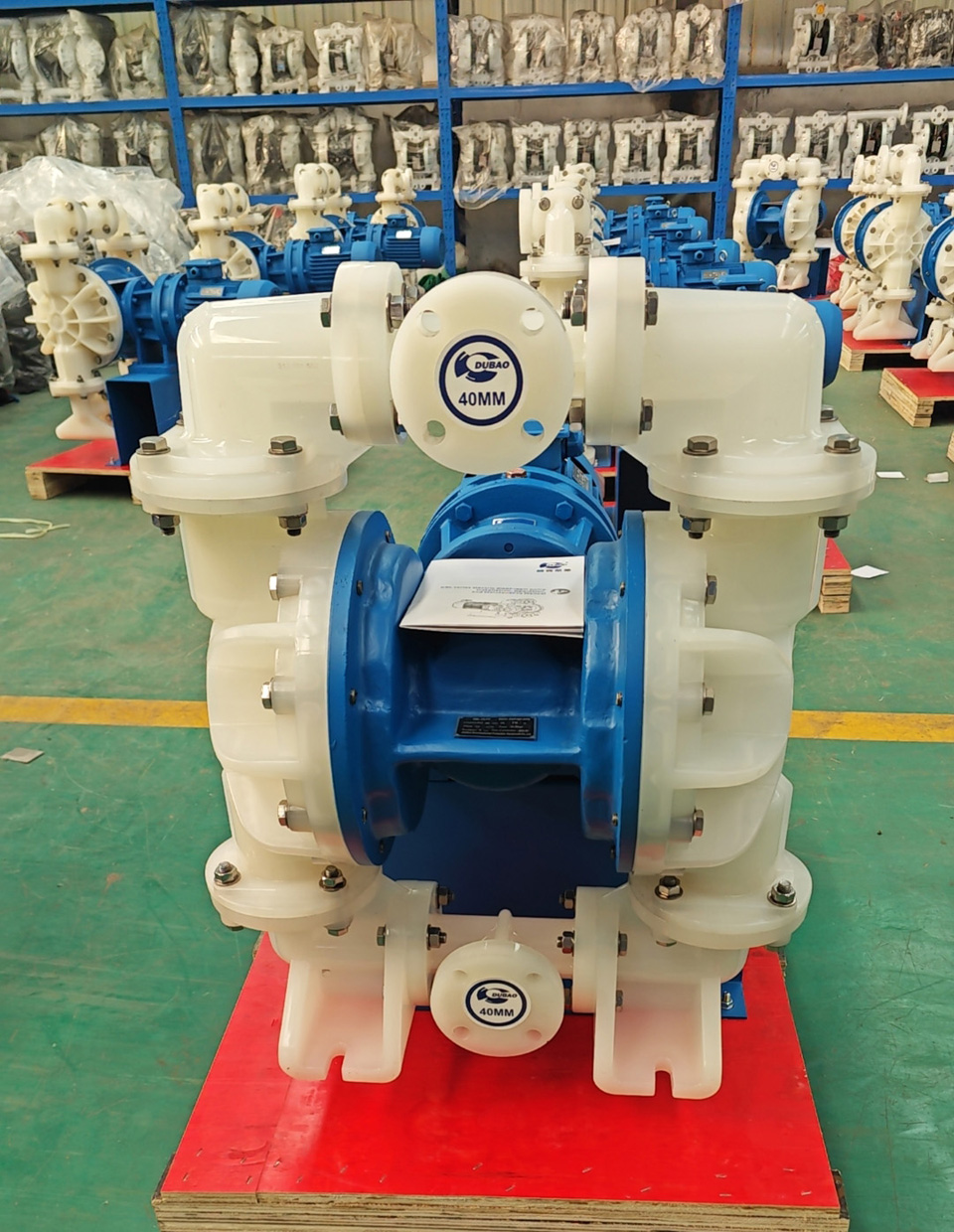

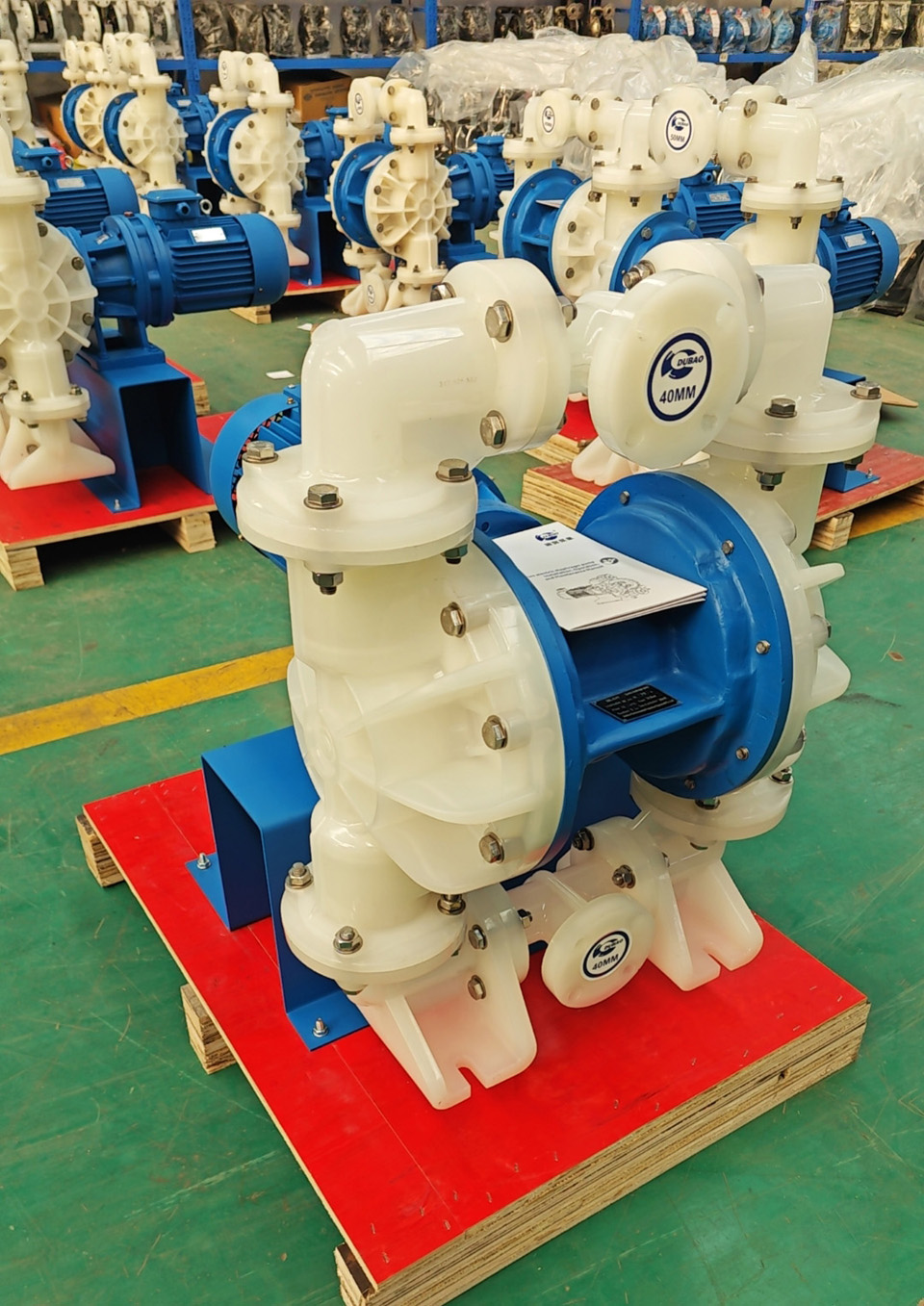

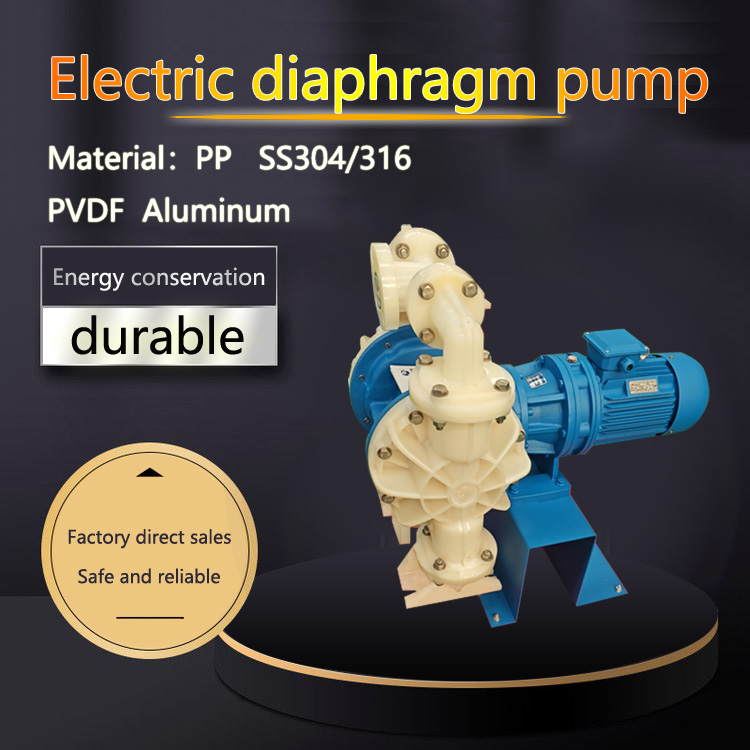

Product Display

Company Profile

Dubao Pump Industry is an enterprise focusing on the production and research and development of chemical pumps and filters for 20 years, with annual sales of 50 million yuan, and its products are sold all over the world. The company has several patents and its products have passed several CE certifications. Globally certified, and exported to various countries and regions around the world, and has achieved unanimous praise from customers. The company has a space of more than 50,000 square meters and more than 200 employees. The production capacity is more than 10,000 units per day. We aim to use the best Service solvesproblems for customers, choose Dubao, choose the future!

Enterprise Certification

Product Packaging

We will strictly pack the products by filling different protective materials in wooden frames and cartons. According to more than 20 years of experience, we will ensure that the products are delivered to every customer intact. Please rest assured to give everything to us!
