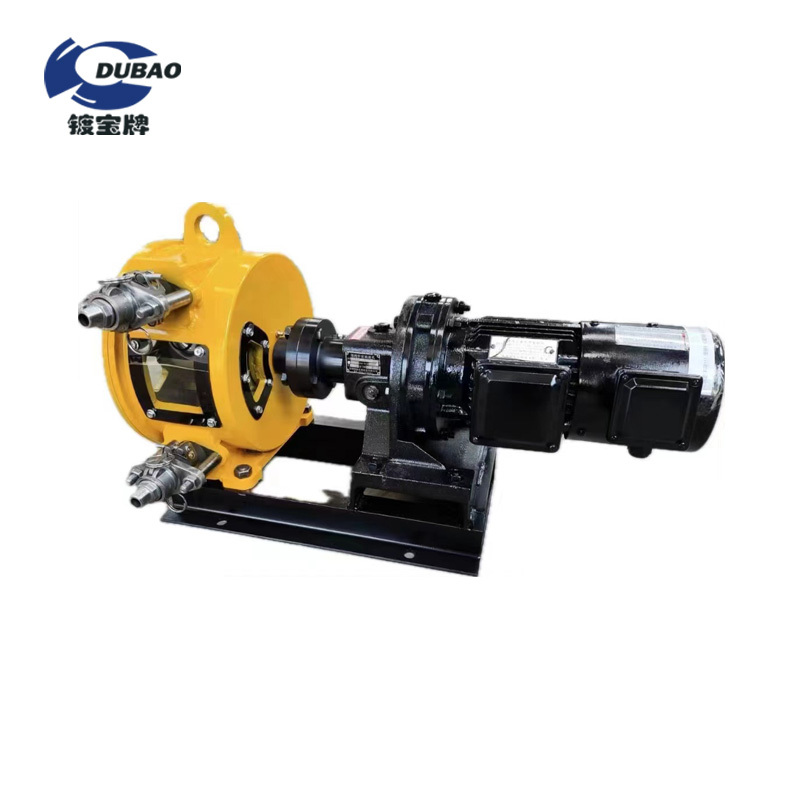

Acid And Alkali Resistant Peristaltic Pump

Name: Acid And Alkali Resistant Peristaltic pump Series
Brand: DUBAO Pump Industry Co., Ltd
SKU: 00365
Availability: InStock
Rating: 5 (1 reviews)

Product Introduction

Working principle and characteristics of Peristaltic pump

The rotor of the pump rotates in the pump chamber filled with lubricant, and the hose is pressed tightly by the upper pressure tile of the rotor and the pump housing. The hose is divided into two volume chambers (suction and discharge chambers, as shown in the figure). During the rotation process, the medium on one side of the tube discharge cavity is transmitted to the outlet, and on the other hand, the other side suction cavity generates a vacuum and inhales the medium. The volume between the rotors is equal to half of the volume transported per revolution. During rotation, the pump continuously transfers this volume flow from the inlet to the outlet.

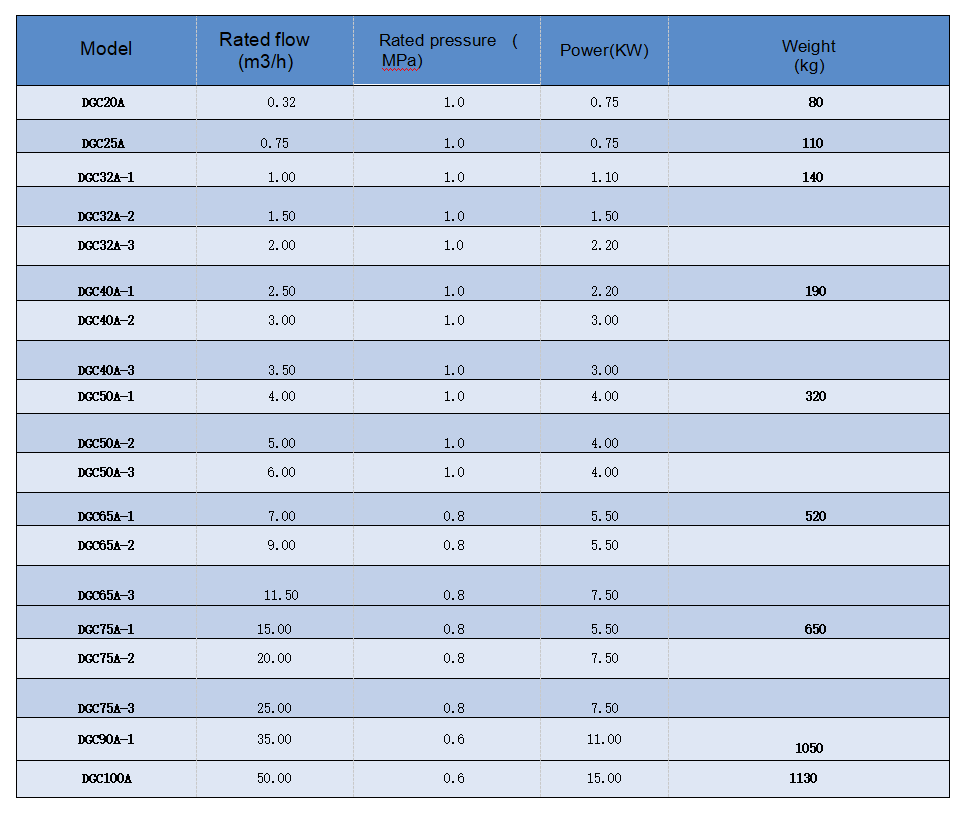

Technical Parameter

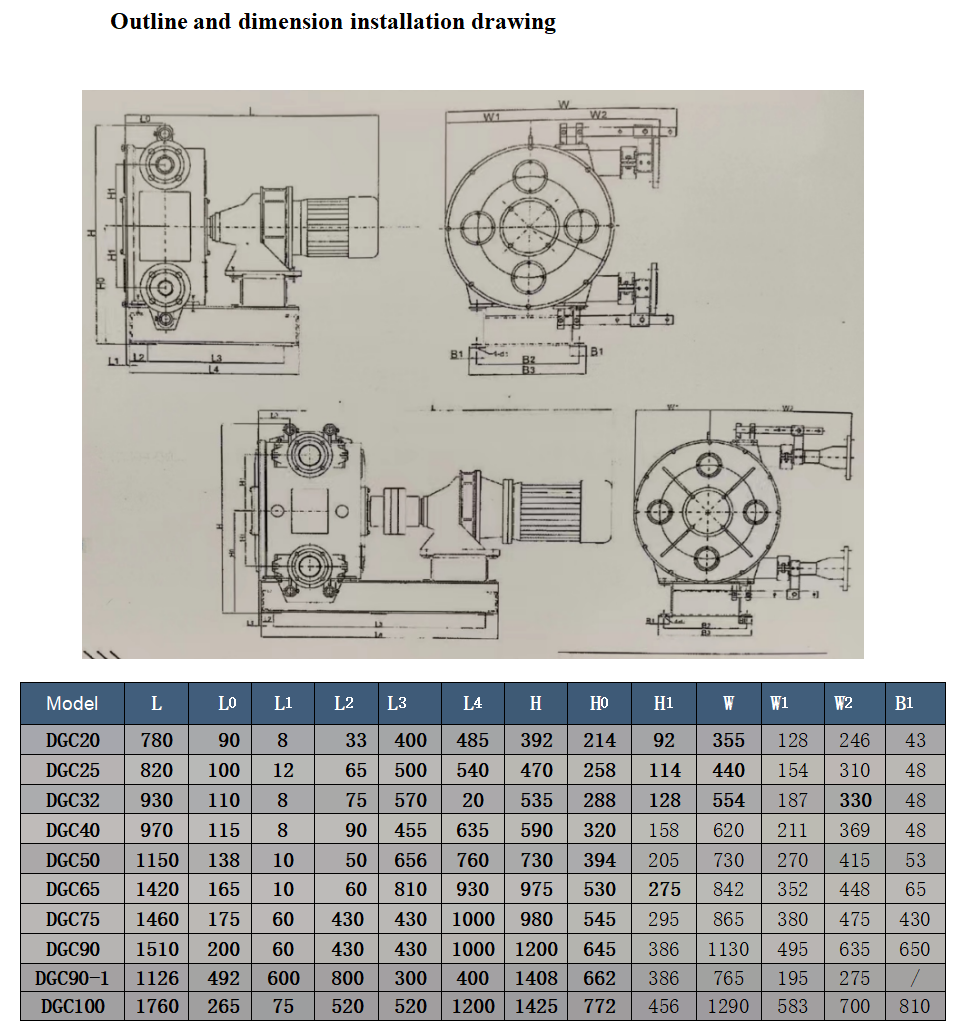

Mounting Dimensions

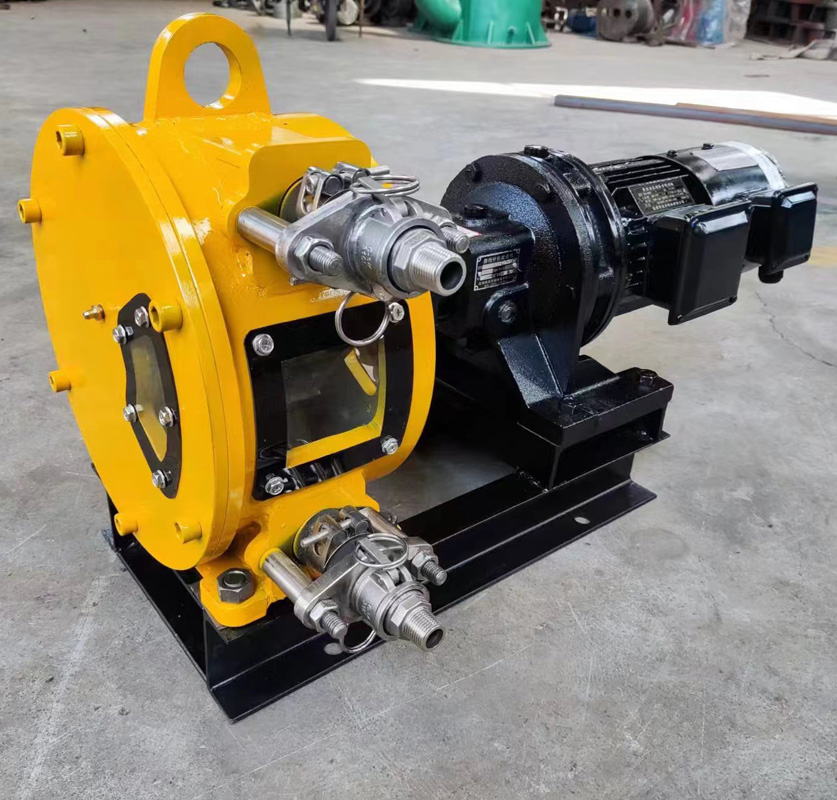

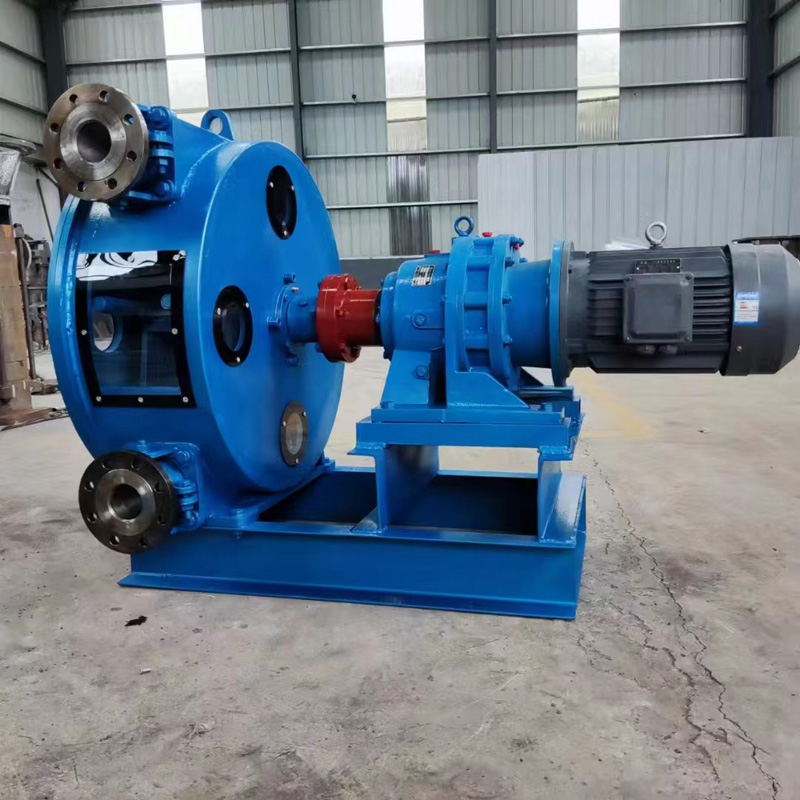

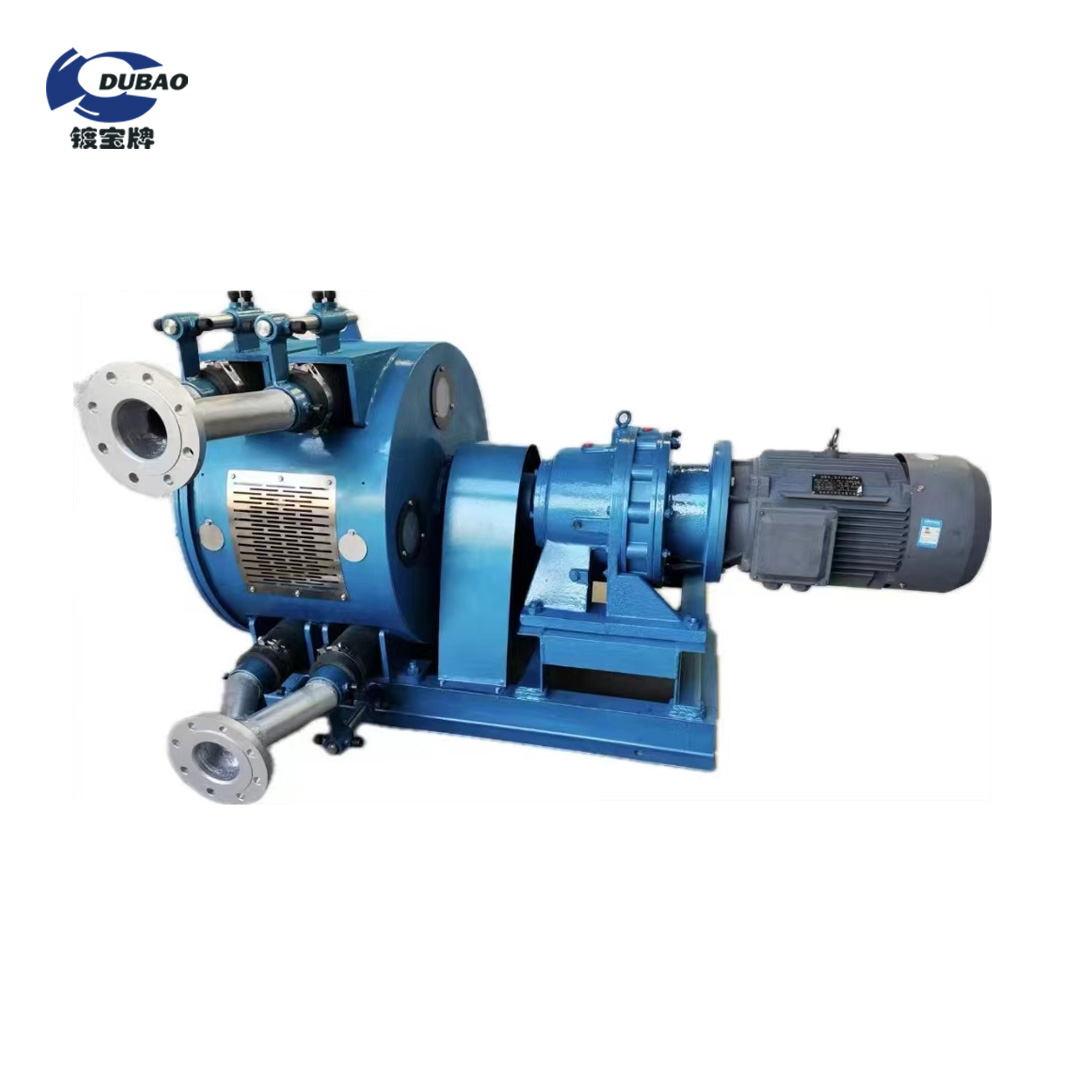

Product Display

Company Profile

Dubao Pump Industry is an enterprise focusing on the production and research and development of chemical pumps and filters for 20 years, with annual sales of 50 million yuan, and its products are sold all over the world. The company has several patents and its products have passed several CE certifications. Globally certified, and exported to various countries and regions around the world, and has achieved unanimous praise from customers. The company has a space of more than 50,000 square meters and more than 200 employees. The production capacity is more than 10,000 units per day. We aim to use the best Service solvesproblems for customers, choose Dubao, choose the future!

Enterprise Certification

Product Packaging

We will strictly pack the products by filling different protective materials in wooden frames and cartons. According to more than 20 years of experience, we will ensure that the products are delivered to every customer intact. Please rest assured to give everything to us!

Customer Feedback

For more than 20 years, DUBAO has won the trust and long-term support of customers in all countries around the world with high-quality service. DUBAO pump industry has always firmly believed that the environment will always change and the technology will always change, and quality and service are the only conditions for the sustainable development of an enterprise.
